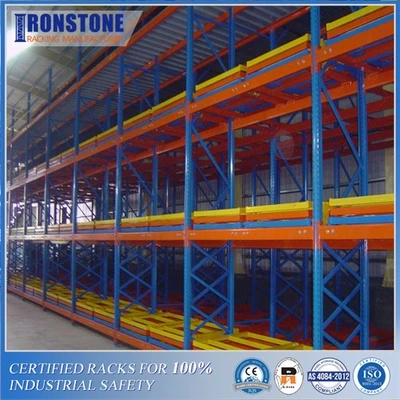

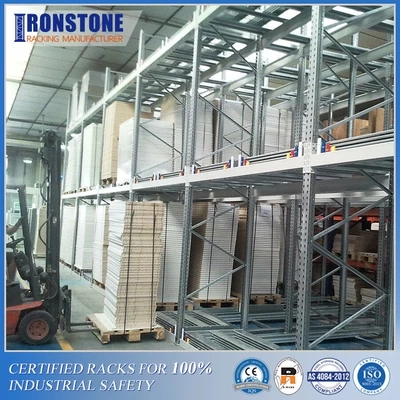

Dynamic Industrial Push Back Pallet Racking System for Warehouse Storage
Our push-back racking combines standard selective pallet racking with a system of trolleys and rails on horizontal support beams. It consists of a series of low-profile trolleys fixed to the track, nested side by side at the front of the system.
The first pallet is placed on the highest trolley. As the next pallet is loaded into the system, it pushes the load of the previous pallet into the system, thus exposing the next pallet of trolleys. The last pallet is placed on the track. A 6-deep push-back racking system will therefore have only 5 carts.
| Product name | Push back pallet rack | Material | High strength steel |
| Rack layers | Customized ranged from 2 to 15 | Rack type | Gravity taken racks |
| Upright frame height | 2500mm~15000mm | Weight capacity | 500~3000kg per level |
| Suitable pallets | Standard pallets and customized sizes | Storage depth | Customized, 2 to 6 pallets depth |
| Finish | Epoxy powder coated for corrosion prevention | ||
| Feature | Palletized cargoes storage and retrieval facilitated with trolley | ||
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars, crates, metal strips, etc. | ||
| Accessories | Bolts and nuts, upright protectors, decks, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days as per order quantity | ||
| Assemble & installation | Detailed assembly instructions are available | ||
