RMI (R-Mark) Certified Customized Cantilever Racking System With Various Options

RMI (R-Mark) Certified Customized Cantilever Racking System With Various Options

In Stock

SKU: IR-00059-CA
Availability: Available
Categorie: Cantilever Racking System

Description

Product Description

What is heavy-duty cantilever rack?

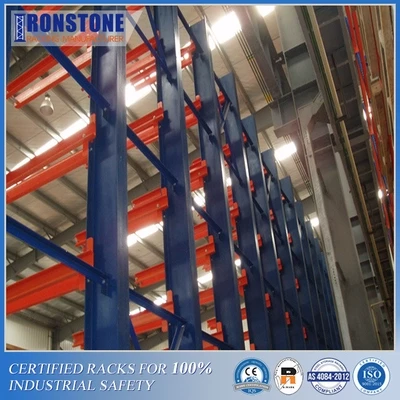

Heavy-duty cantilever racks, also called pipe racks, timber racks, lumber racks, furniture racks, etc, often named after the products they stored, can hold medium to heavy loads that can't fit in standard pallet racking systems.

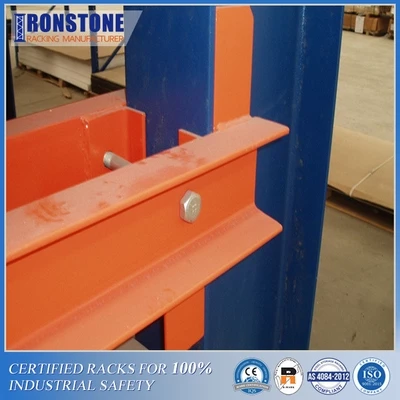

Heavy-duty cantilever racks are usually constructed with structural steel possessing the features of strength, rigidity, and durability. Single-sided or double-sided vertical columns and bases, adjustable horizontal arms, along with bracings all form a basic weight-supporting unit of the cantilever system.

Arm and column specifications

Cantilever Arm Load Capacity (Kg)
	Arm Length(mm)
Height	800	1000	1200	1400	1600
H120	1500	1380	1020	750	570
H150	1500	1500	1250	1190	910
H180	1500	1500	1250	1250	1250

Cantilever Rack Column Capacity(Kg)
Specification(mm)	Height (mm)	Capacity(kg)
		Single-sided	Double-sided
		Single-sided	Double-sided	305*96	2500	6800	13600
3000	6400	12800
3500	5900	11800
4000	5600	11200
4500	5400	10800
5000	5100	10200
5500	4500	9000
6000	4200	8400
Cantilever Rack Column Capacity(Kg)
Specification(mm)	Height(mm)	Capacity(kgs)
		Single-sided	Double-sided
		Single-sided	Double-sided	350*96	5000	8500	17000
5500	8100	16200
6000	7700	15400
6500	7200	14400
7000	6700	13400
7500	6300	12600
8000	5800	11600
8500	5400	10800
Cantilever Rack Column Capacity(Kg)
Specification(mm)	Height(mm)	Capacity(kg)
		Single-sided	Double-sided
		Single-sided	Double-sided	410*96	5500	12500	25000
6000	12000	24000
6500	11000	22000
7000	10000	20000
7500	9500	19000
8000	9200	18400
8500	8700	17400
9000	7500	15000
