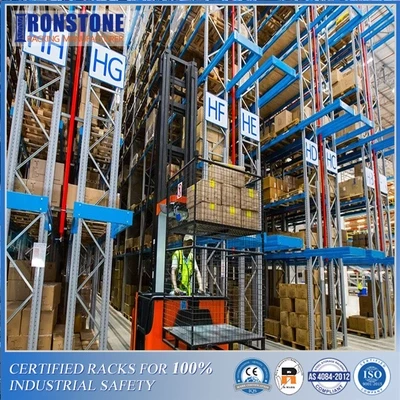

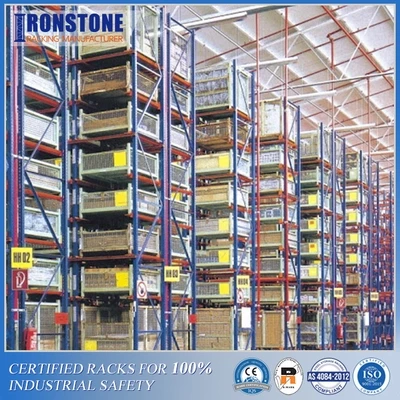

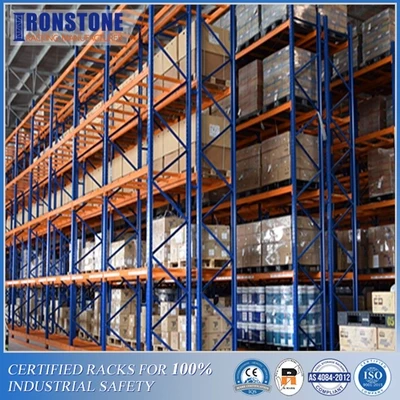

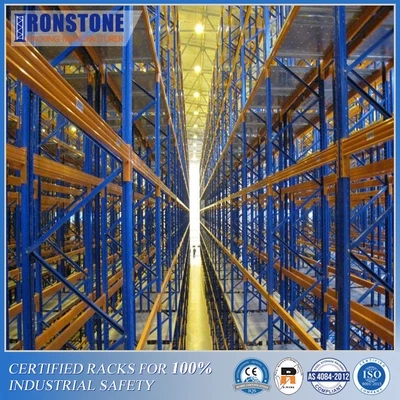

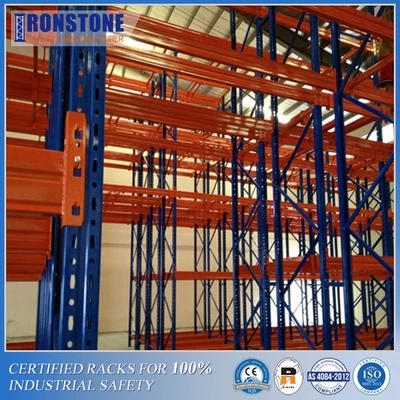

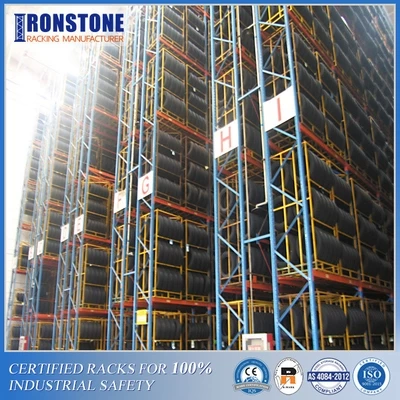

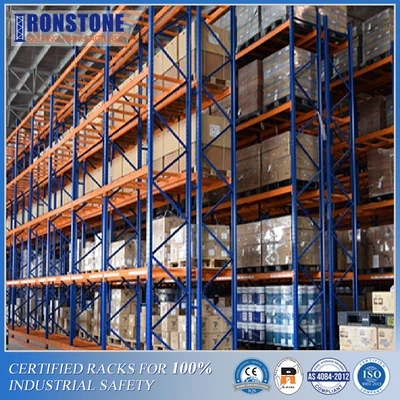

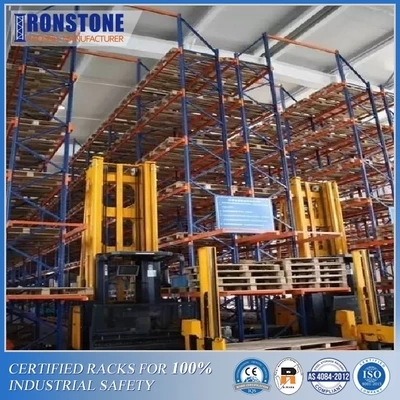

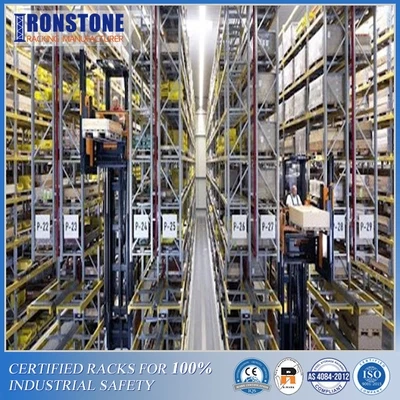

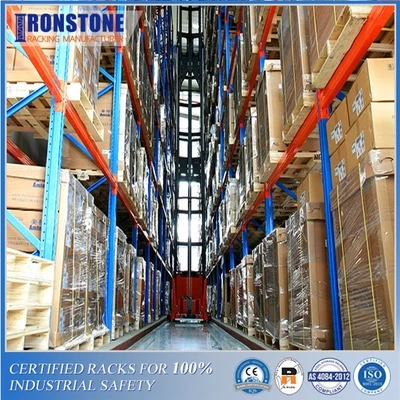

Storage solution of VNA racking designed by Ironstone
Dealing with all these requirements, very narrow aisle (VNA) pallet racking system is highly recommended by Ironstone professional rack engineers. Providing increased storage volume, VNA racking is a condensed mode changed from standard pallet racks.

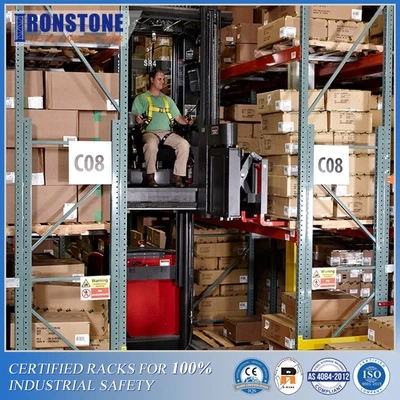

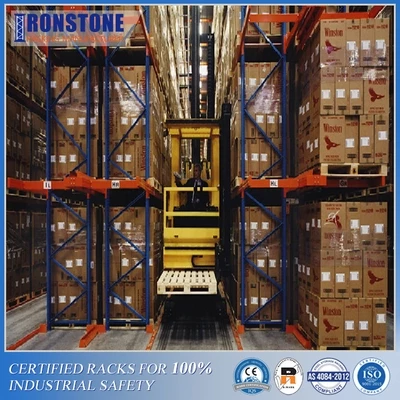

Leaving vehicles 1.5m to 2.8m wide walkways for material handling, the operation speed and convenience are compromised for more pallet positions while pallets selectivity and accessibility remain the same.
Specifications of VNA racking components
| Rack components | Column section size(mm) | Material thickness(mm) | Steel |
| Uprights | 90*70 | 1.8 | Q355B |
| 90*70 | 2.0 | Q355B | |
| 90*70 | 2.3 | Q355B | |
| 100*80 | 2.0 | Q355B | |
| 100*80 | 2.3 | Q355B | |
| 100*80 | 2.5 | Q355B | |
| Beams | 80*50*1.5 | 1.5 | Q355B |
| 100*50*1.5 | 1.5 | Q355B | |
| 120*50*1.5 | 1.5 | Q355B | |
| 140*50*1.5 | 1.5 | Q355B | |
| 140*50*1.8 | 1.8 | Q355B | |
| 160*50*1.8 | 1.8 | Q355B | |
| 160*50*2.0 | 2.0 | Q355B |
