Product Description

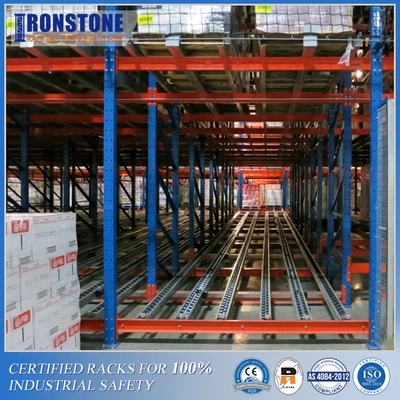

Dynamic Pallet Flow Racking System for Industrial Warehouse High-Density Storage

Pallet flow racking, or "dynamic pallet storage", is ideal if you use a first-in-first-out goods storage system. With this system, you can save up to 60% of space compared to using conventional pallet racking.

The pallet flow system offers a dynamic storage solution with integrated conveyor modules to accommodate most types and sizes of pallets. It is ideal for the beverage industry or as a buffer storage facility for manufacturing.

The pallets move smoothly on full-width or double-track rollers. When the front pallet is removed from the front of the rack, the rear pallet is pulled back. The pallet always moves safely and smoothly thanks to the automatic brake and the combined load guide and end stop.

Name Pallet flow rack Material Steel
Shelf levels 2~12 tiers per shelving unit Color Customized
Gray/White/Black/Blue
Height Customized
1500mm~5000mm
Weight Capacity 150~800kg per shelf
Width Customized
1000mm~2700mm
Depth Customized
400mm~1200mm
Finish Epoxy Powder Coated Corrosion Prevention
Usage Cargoes/Boxes/Non-palletized product Storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to order quantity
Assemble & installation Easy assemble with detailed instruction
