Product Description

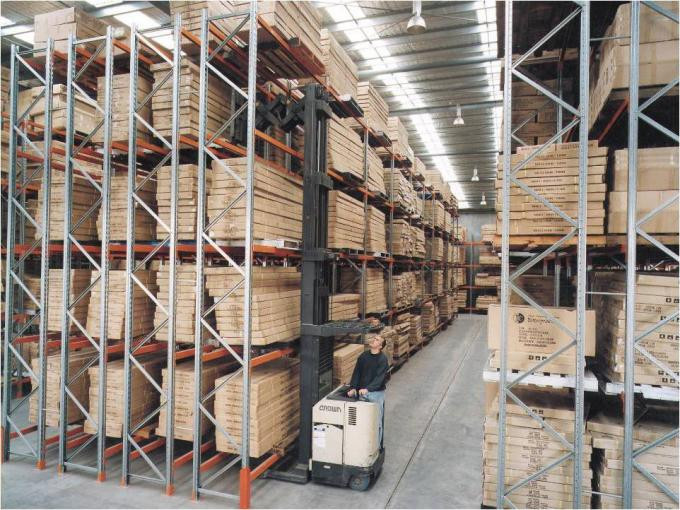

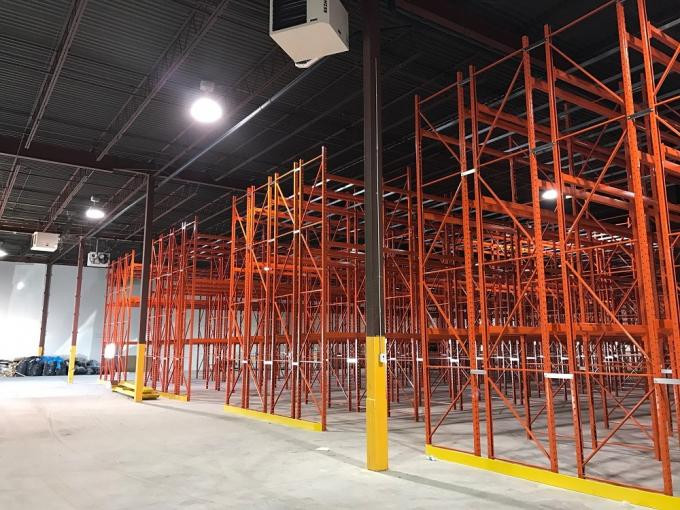

Industrial Warehouse Double Deep Pallet Rack Systems for High Density Storage

Double deep pallet rack system is a variation of standard selective pallet rack system. Compared with selective pallet rack, double deep pallet rack creates more storing space but leaves less selectivity for stored cargoes. It is composed of two rows of selective pallet racks set up back to back, reducing aisles to increase storage density.

Thus, not all pallets are directly accessible and a special forklift is required to reach the second pallet. Therefore, this system is particularly suitable for warehouses utilizing LIFO(last in, first out) inventory rotation direction with high volume cargoes but low variety.

Name Pallet racking Material High Strength Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installing at site.
